ChanganQ05

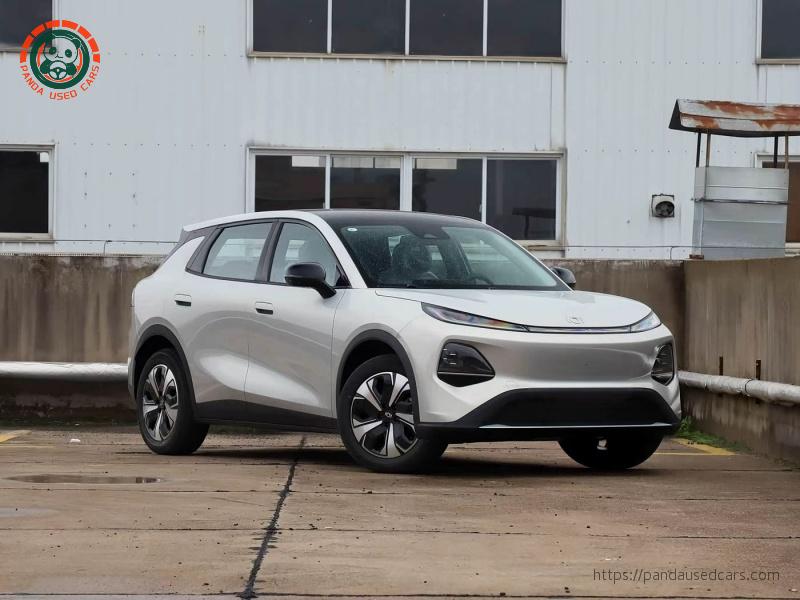

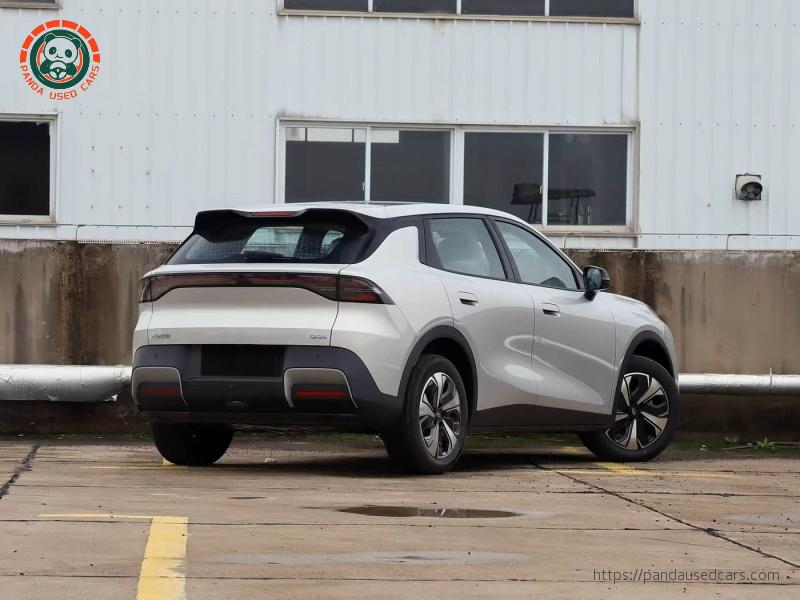

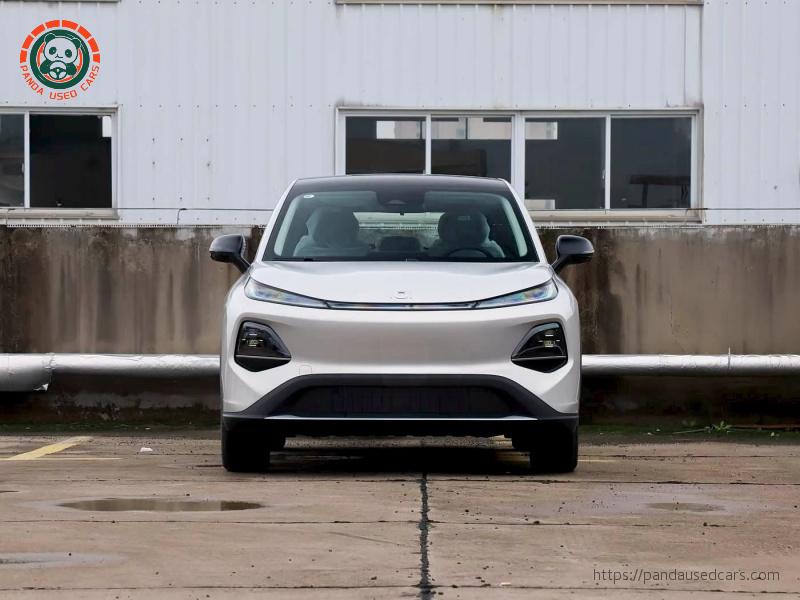

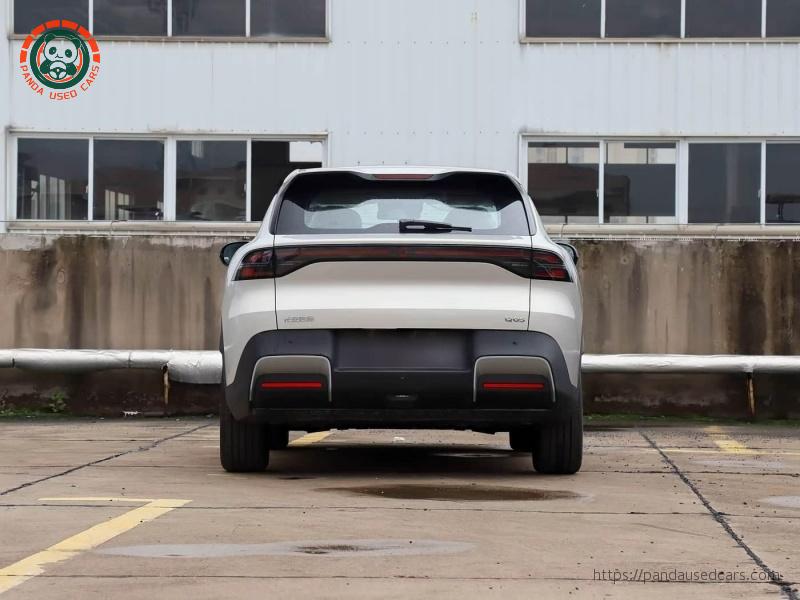

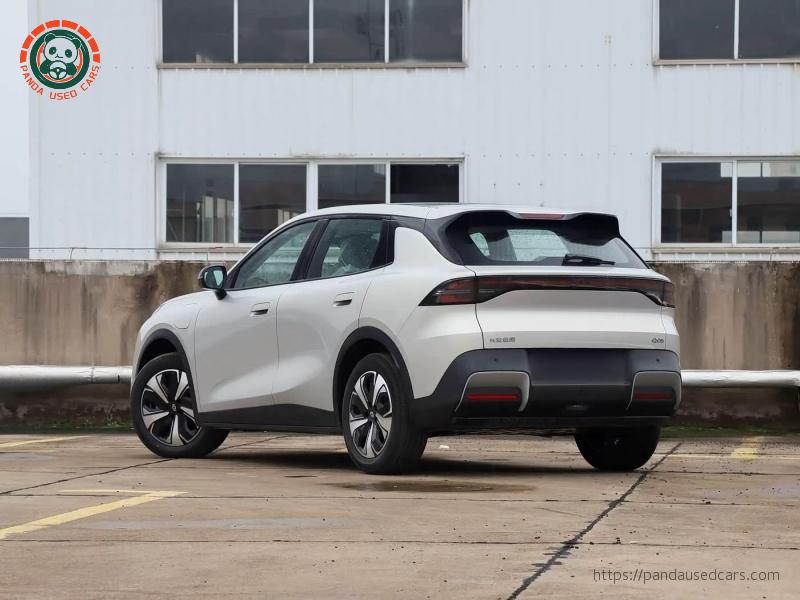

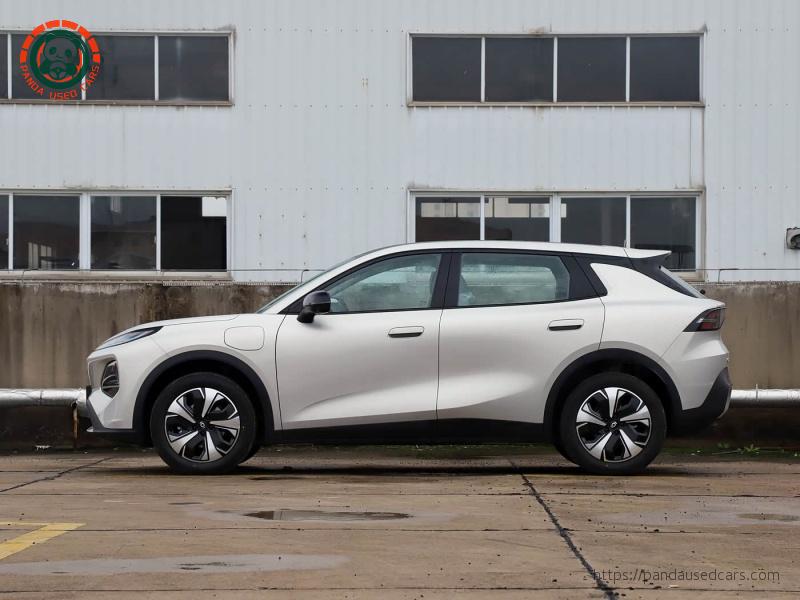

Changan Qiyuan Q05 2026 Model 506Max+

Contact for details

Launch: 2026-04-10163PsOrigin: ChinaTransmission: Single-speed EV TransmissionFuel: EVBody Type: SUV

Sales ManagerLee

Chat With UsWhatsApp

Overview

Basic Information

Manufacturer:Changan Qiyuan

Vehicle Class:Compact SUV

Energy Type:Pure Electric

Launch Date:2026-04-10

Max Power (kW):120

Max Torque (N·m):190

Electric Motor (Ps):163

L×W×H (mm):4435*1855*1595

Top Speed (km/h):160

CLTC Electric Range (km):506

Fast Charge Time (hours):0.25

Fast Charge SOC Range (%):30-80

Equivalent Fuel Consumption (L/100km):1.36

Vehicle Warranty:6 years or 150,000 km

Curb Weight (kg):1550

Max Gross Weight (kg):1950

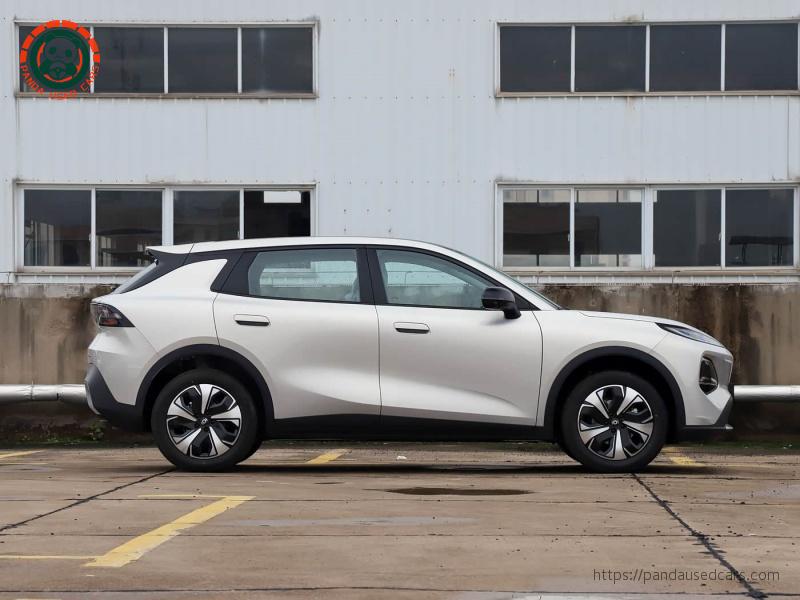

Body

Length (mm):4435

Width (mm):1855

Height (mm):1595

Wheelbase (mm):2735

Front Track (mm):1580

Rear Track (mm):1590

Approach Angle (°):18

Departure Angle (°):25

Min Turning Radius (m):5.3

Body Structure:SUV

Door Opening Type:Conventional Doors

Doors:5

Seats:5

Trunk Volume (L):540-1380

Drag Coefficient (Cd):0.265

Electric Motor

Front Motor Brand:Chongqing Qingshan

Front Motor Model:TZ180XS002

Motor Type:Permanent Magnet/Synchronous

Total Motor Power (kW):120

Total Motor Horsepower (Ps):163

Total Motor Torque (N·m):190

Front Motor Max Power (kW):120

Front Motor Max Torque (N·m):190

Drive Motors:Single Motor

Motor Layout:Front-mounted

EV System Warranty:Lifetime warranty for first owner (non-commercial use; exclusions apply per official policy)

Battery & Charging

Battery Type:LFP Battery

Cell Brand:CATL

Battery Technology:Jinzhongzhao Battery

Battery Cooling:Liquid Cooling

CLTC Electric Range (km):506

Battery Capacity (kWh):51.9

Power Consumption (kWh/100km):11.7

Fast Charging:Supported

Fast Charge Time (hours):0.25

Fast Charge SOC Range (%):30-80

AC Charge Port Location:Left front side

DC Charge Port Location:Left front side

VTOL Max Discharge Power (kW):3.3

Transmission

Abbreviation:Single-speed EV Transmission

Gears:1

Transmission Type:Fixed Gear Ratio Transmission

Chassis & Steering

Drive Type:Front-wheel Drive

Front Suspension:MacPherson Independent Suspension

Rear Suspension:Torsion Beam Non-independent Suspension

Steering Assist:Electric Power Steering

Body Structure:Monocoque

Wheels & Brakes

Front Brakes:Ventilated Disc

Rear Brakes:Disc

Parking Brake:Electronic Parking Brake

Front Tires:225/55 R18

Rear Tires:225/55 R18

Passive Safety

Front Airbags:Driver/Passenger

Side Airbags:Front/Rear

Curtain Airbags:Front/Rear

Active Safety

ABS:Standard

Brake Force Distribution (EBD/CBC):Standard

Brake Assist (EBA/BAS/BA):Standard

Traction Control (ASR/TCS/TRC):Standard

Stability Control (ESC/ESP/DSC):Standard

Tire Pressure Monitoring:Tire Pressure Monitoring Display

Seat Belt Reminder:Front Row

ISOFIX Child Seat Anchors:Standard

Lane Departure Warning:Standard

Autonomous Emergency Braking:Standard

Forward Collision Warning:Standard

Roadside Assistance Call:Standard

Driving Dynamics

Drive Mode Select:Sport, Standard/Comfort, Custom/Personalized

Auto Hold:Standard

Hill Start Assist:Standard

Driving Hardware

Front/Rear Parking Sensors:Front-/Rear

Driver Assistance Camera:360-degree Panoramic Imaging, Side Blind Spot Imaging

Transparent Chassis / 540° View:Standard

Front Perception Camera:Mono Camera

Cameras:5

Ultrasonic Sensors:3

Millimeter-wave Radars:1

Driving Features

Cruise Control:Full-speed Adaptive Cruise Control

Driver Assistance Level:L2

Satellite Navigation:Standard

Live Traffic Info:Standard

Lane Keeping Assist:Standard

Lane Centering:Standard

Traffic Sign Recognition:Standard

Exterior

Wheel Material:Alloy

Power Tailgate:Standard

Central Locking:Standard

Key Type:Remote Key, Bluetooth Key

Keyless Start:Standard

Keyless Entry:Driver Position

Remote Start:Standard

Exterior Lighting

Low Beam:LED

High Beam:LED

Auto Headlights:Standard

Headlight Level Adjustment:Standard

Headlight Delay Off:Standard

Sunroof & Glass

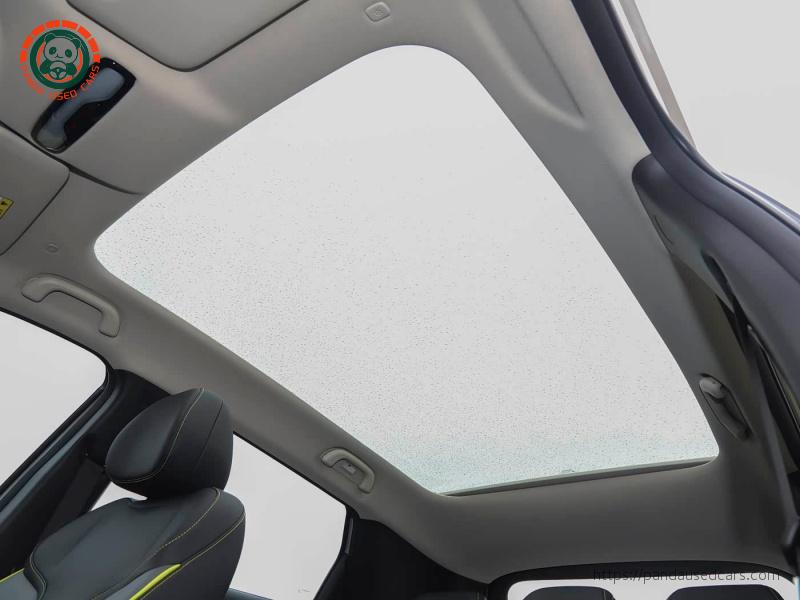

Sunroof Type:Non-opening Panoramic Sunroof

Power Windows:Front/Rear

One-touch Windows:All

Anti-pinch Windows:Standard

Vanity Mirrors:Driver + Illuminated, Passenger + Illuminated

Rear Wiper:Standard

Exterior Mirrors

Mirror Features:Electric Adjustment, Electric Folding, Heating, Auto-folding on Lock

Power Mirror Adjustment:Standard

Power Folding:Standard

Heated Mirrors:Standard

Auto Fold on Lock:Standard

Connectivity & Intelligence

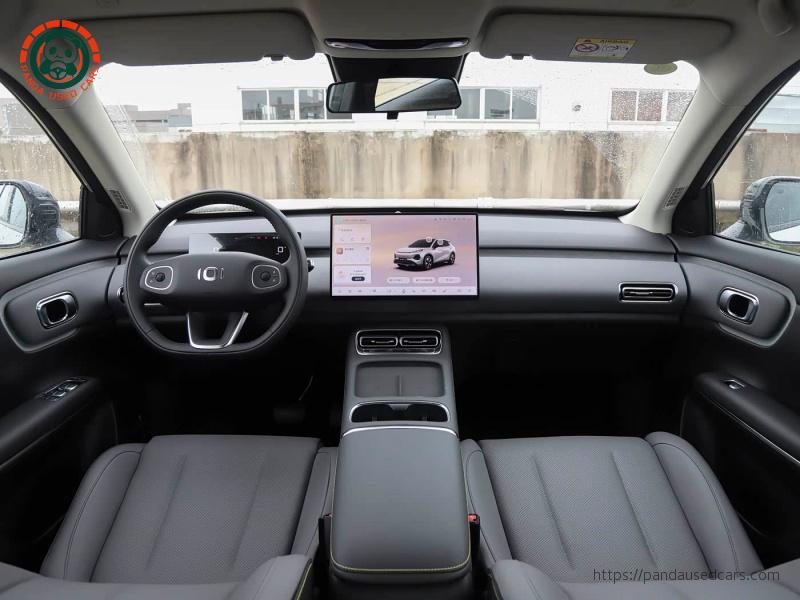

Center Display:Touch LCD Screen

Center Screen Size:14.6 inches

Infotainment OS:Tianshu Smart Cockpit

Bluetooth / Hands-free:Standard

Phone Connectivity:CarPlay, HUAWEI HiCar, Carlink, Honor Vehicle Link

Voice Control:Multimedia, Navigation, Phone, Air Conditioning, Windows, Seat Heating, Seat Ventilation, Seat Massage

Voice Wake Word:Hello, Xiao An

Wake-free Voice:Standard

Voice Zone Recognition:Dual Zone

Continuous Voice Recognition:Standard

See-and-say:Standard

App Store:Standard

Steering & Interior Mirror

Steering Wheel Material:Leather

Steering Adjustment:Manual Tilt and Telescopic

Shift Type:Electronic Column Shift

Multifunction Steering Wheel:Standard

Trip Computer Display:Color

Cluster Screen Size:10.17 inches

Interior Mirror Features:Manual Anti-glare

In-cabin Charging

Media / Charging Ports:USB, Type-C

USB / Type-C Ports:Front: 2, Rear: 1

Wireless Phone Charging:Front Row

Wireless Charging Power:50W

Trunk 12V Outlet:Standard

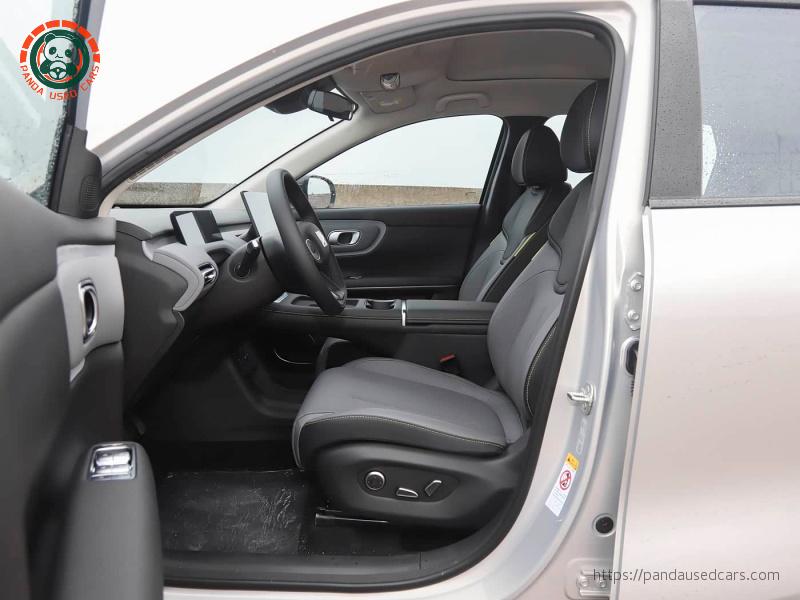

Seats

Seat Material:Synthetic Leather

Driver Seat Adjustment:Fore-aft, Backrest, Height (2-way), Lumbar Support (4-way)

Passenger Seat Adjustment:Fore-aft, Backrest, Leg Support, Lumbar Support (4-way)

Power Front Seats:Driver/Passenger

Front Seat Functions:Heating, Ventilation, Massage

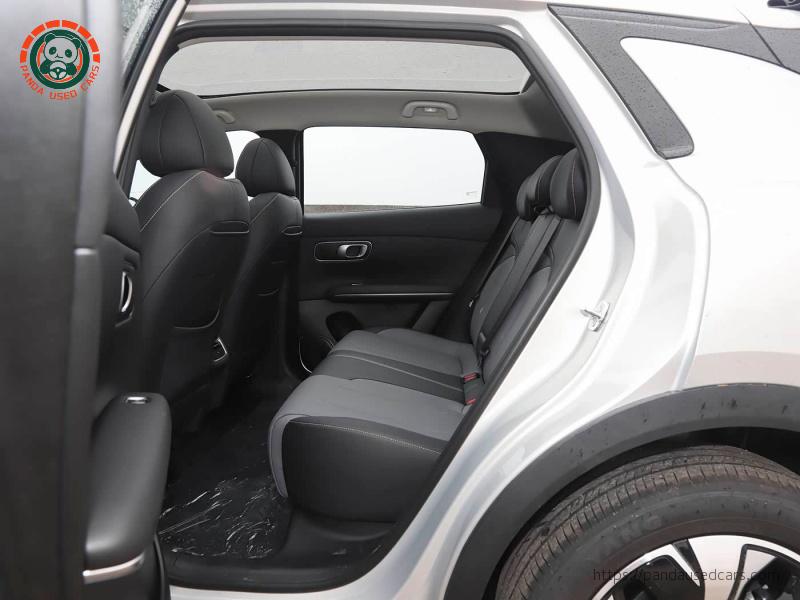

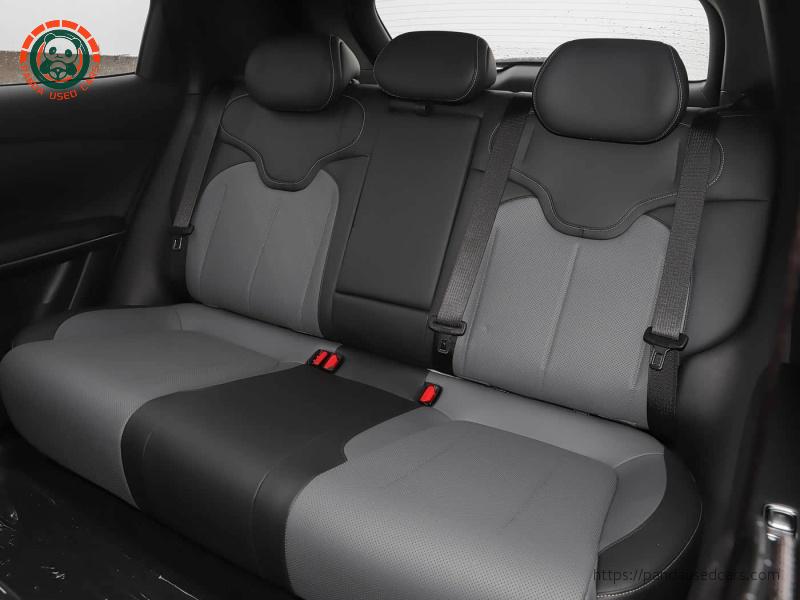

Second Row Adjustment:Backrest

Rear Seat Fold:Split Folding

Front/Rear Armrests:Front/Rear

Rear Cup Holders:Standard

Audio & Interior Lighting

Speakers:8

Ambient Lighting:256-color

Climate & Refrigerator

Climate Control Type:Automatic Air Conditioning

Rear Vents:Standard

PM2.5 Filter:Standard
