SOLD
1/11
Launch: 2025-09-151.5T 150 Ps L4 / 503PsOrigin: ChinaTransmission: 1-speed DHTFuel: PHEVBody Type: Van
Overview
Basic Information
Manufacturer:VOYAH
Vehicle Class:Mid-size to Large MPV
Energy Type:Plug-in Hybrid Electric Vehicle
Emission Standard:China VI
Launch Date:2025-09-15
Max Power (kW):480
Max Torque (N·m):840
Transmission:1-speed DHT
Engine:1.5T 150 Ps L4
Electric Motor (Ps):503
L×W×H (mm):5315*1985*1820
0-100 km/h (s):5.9
Top Speed (km/h):203
WLTC Fuel Consumption (L/100km):0.56
Min SOC Fuel Consumption WLTC (L/100km):6.90
Min SOC Fuel Consumption NEDC (L/100km):5.41
Combined Fuel Consumption (L/100km):3.02
Vehicle Warranty:5 years or 100,000 km
Curb Weight (kg):2740
Max Gross Weight (kg):3265
Body
Length (mm):5315
Width (mm):1985
Height (mm):1820
Wheelbase (mm):3200
Front Track (mm):1705
Rear Track (mm):1708
Body Structure:MPV
Door Opening Type:Sliding doors + Conventional doors
Doors:5
Seats:7
Fuel Tank Capacity (L):65
Trunk Volume (L):348-2700
Engine
Engine Model:DFMC15TE3
Displacement (mL):1497
Displacement (L):1.5
Intake Type:Turbocharged
Engine Layout:Transverse
Cylinder Arrangement:L
Cylinders:4
Valves per Cylinder:4
Valve Train:DOHC
Max Horsepower (Ps):150
Max Power (kW):110
Max Power RPM:4500
Max Torque (N·m):220
Max Torque RPM:2000-4500
Net Max Power (kW):105
Energy Type:Plug-in Hybrid Electric Vehicle
Fuel Grade:95
Fuel Supply:Direct Injection
Cylinder Head Material:Aluminum Alloy
Cylinder Block Material:Aluminum Alloy
Emission Standard:China VI
Electric Motor
Front Motor Model:DY38TZ225210
Motor Type:Permanent Magnet/Synchronous
Total Motor Power (kW):370
Total Motor Horsepower (Ps):503
Total Motor Torque (N·m):620
Front Motor Max Power (kW):210
Front Motor Max Torque (N·m):310
Rear Motor Max Power (kW):160
Rear Motor Max Torque (N·m):310
Rear Motor Brand:Zhixin Technology
Rear Motor Model:TZ200XSP08
Drive Motors:Dual Motor
Motor Layout:Front + Rear
EV System Warranty:8 years or 160,000 km
Battery & Charging
Battery Type:LFP Battery
Cell Brand:CATL (Jiangsu CATL)
Battery Cooling:Liquid Cooling
CLTC Electric Range (km):235
WLTC Electric Range (km):185
Battery Capacity (kWh):43.2
Power Consumption (kWh/100km):21.2
Fast Charging:Supported
Fast Charge Time (hours):0.33
Fast Charge SOC Range (%):20-80
AC Charge Port Location:Right rear side
DC Charge Port Location:Right rear side
VTOL Max Discharge Power (kW):3.3
Transmission
Abbreviation:1-speed DHT
Gears:1
Transmission Type:Dedicated Hybrid Transmission (DHT)
Chassis & Steering
Drive Type:Front-wheel Drive with Four-wheel Drive
4WD Type:Electric Four-wheel Drive
Front Suspension:Double Wishbone Independent Suspension
Rear Suspension:Five-link Independent Suspension
Steering Assist:Electric Power Steering
Body Structure:Monocoque
Wheels & Brakes
Front Brakes:Ventilated Disc
Rear Brakes:Ventilated Disc
Parking Brake:Electronic Parking Brake
Front Tires:255/50 R20
Rear Tires:255/50 R20
Spare Tire:Tire Repair Kit
Passive Safety
Front Airbags:Driver/Passenger
Side Airbags:Front/Rear
Curtain Airbags:Front/Rear
Active Safety
ABS:Standard
Brake Force Distribution (EBD/CBC):Standard
Brake Assist (EBA/BAS/BA):Standard
Traction Control (ASR/TCS/TRC):Standard
Stability Control (ESC/ESP/DSC):Standard
Tire Pressure Monitoring:Tire Pressure Display
Seat Belt Reminder:Front Seat, Second Row
ISOFIX Child Seat Anchors:Standard
Lane Departure Warning:Standard
Autonomous Emergency Braking:Standard
Fatigue Reminder:Standard
Door Open Warning:Standard
Forward Collision Warning:Standard
Rear Collision Warning:Standard
Roadside Assistance Call:Standard
Driving Dynamics
Drive Mode Select:Sport, Eco, Standard/Comfort, Off-road, Snow, Custom/Personalized
Start-Stop System:Standard
Auto Hold:Standard
Hill Start Assist:Standard
Driving Hardware
Front/Rear Parking Sensors:Front/Rear
Driver Assistance Camera:360-degree Panoramic Imaging
Transparent Chassis / 540° View:Standard
Front Perception Camera:Stereo
Cameras:7
Ultrasonic Sensors:12
Millimeter-wave Radars:3
Driving Features
Cruise Control:Full-speed Adaptive Cruise Control
Driver Assistance Level:L2
Reverse Cross Traffic Alert:Standard
Satellite Navigation:Standard
Live Traffic Info:Standard
Lane Change Assist:Standard
Lane Keeping Assist:Standard
Lane Centering:Standard
Traffic Sign Recognition:Standard
Auto Parking Assist:Standard
Remote Parking:Standard
Assisted Lane Change:Standard
Ramp Assist:Standard
Traffic Light Recognition:Standard
Assisted Driving Sections:Highway
Exterior
Wheel Material:Aluminum Alloy
Soft-close Doors:Front
Projection Welcome:Standard
Power Tailgate:Standard
Engine Immobilizer:Standard
Central Locking:Standard
Key Type:Remote Key, Bluetooth Key
Keyless Start:Standard
Keyless Entry:All Doors
Remote Start:Standard
Exterior Lighting
Low Beam:LED
High Beam:LED
Lighting Features:Scene Lighting
LED Daytime Running Lights:Standard
Adaptive High/Low Beam:Standard
Auto Headlights:Standard
Headlight Level Adjustment:Standard
Headlight Delay Off:Standard
Sunroof & Glass
Sunroof Type:Segmented Electric Sunroof
Power Windows:Front/Rear
One-touch Windows:All
Anti-pinch Windows:Standard
Acoustic Side Glass:Front Row, Rear Row
Rear Privacy Glass:Standard
Vanity Mirrors:Driver + Illuminated, Passenger + Illuminated
Rear Wiper:Standard
Rain-sensing Wipers:Rain-sensing
Exterior Mirrors
Mirror Features:Electric Adjustment, Electric Folding, Mirror Memory, Mirror Heating, Auto Tilt-down on Reverse, Auto Folding on Lock
Power Mirror Adjustment:Standard
Power Folding:Standard
Heated Mirrors:Standard
Auto Fold on Lock:Standard
Reverse Tilt-down:Standard
Connectivity & Intelligence

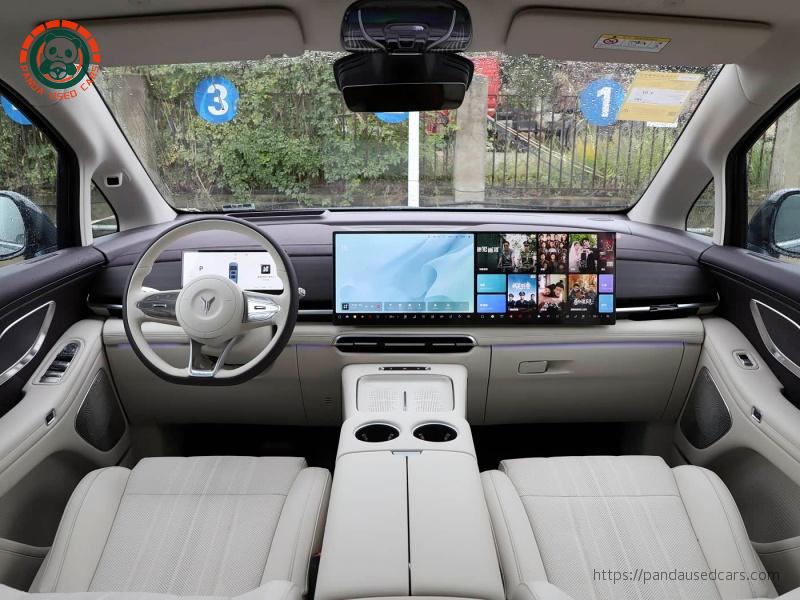

Center Display:Touch LCD Screen
Center Screen Size:15.4 inches
Passenger Screen Size:15.4 inches
Rear LCD Screens:17.3 inches
Rear Multimedia Control:Multi-finger Flying Screen Control, Touch Vibration Feedback
Infotainment OS:VOYAH Free Range Cockpit
Bluetooth / Hands-free:Standard
Phone Connectivity:Factory-integrated Mirroring
Voice Control:Multimedia, Navigation, Phone, Air Conditioning, Sunroof, Windows, Seats, Heating, Ventilation, Massage
Voice Wake Word:Hey VOYAH
Voice Zone Recognition:Four-zone
Continuous Voice Recognition:Standard
See-and-say:Standard
App Store:Standard
Steering & Interior Mirror
Steering Wheel Material:Leather
Steering Adjustment:Manual Up/Down + Fore/Aft
Shift Type:Electronic Column-mounted Shifter
Multifunction Steering Wheel:Standard
Heated Steering Wheel:Standard
Trip Computer Display:Color
Digital Instrument Cluster:Standard
Cluster Screen Size:10.25 inches
Head-up Display:AR-HUD
Interior Mirror Features:Auto-dimming
In-cabin Charging
Media / Charging Ports:USB, Type-C
USB / Type-C Ports:Front: 2, Rear: 4
Wireless Phone Charging:Front, Rear
Wireless Charging Power:50W
Trunk 12V Outlet:Standard
Seats
Seat Material:Artificial Leather
Driver Seat Adjustment:Fore/Aft, Backrest, Height (4-way), Lumbar Support (4-way)
Passenger Seat Adjustment:Fore/Aft, Backrest, Height (2-way)
Power Front Seats:Driver/Passenger
Front Seat Functions:Heating, Ventilation, Massage
Seat Memory:Driver, Passenger, Rear
Rear Seat Adjustment from Passenger Side:Standard

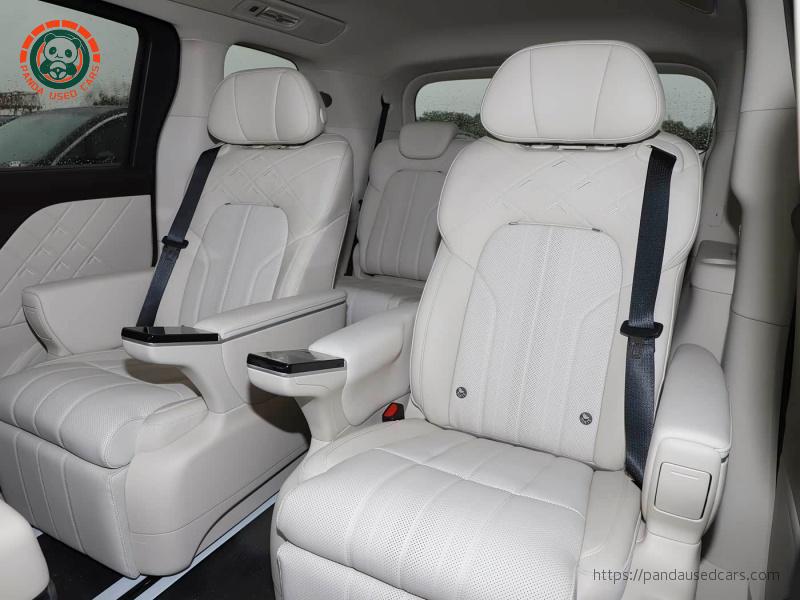

Second Row Adjustment:Fore/Aft, Backrest, Lumbar, Leg Rest
Second Row Features:Heating, Ventilation, Massage, Rear Table, Zero-gravity Seat
Rear Seat Fold:Split Folding
Front/Rear Armrests:Front/Rear
Rear Cup Holders:Standard
Audio & Interior Lighting
Speakers:20
Touch Reading Lights:Standard
Ambient Lighting:64-color
Climate & Refrigerator
Climate Control Type:Automatic Air Conditioning
Rear Independent A/C:Standard
Rear Vents:Standard
Multi-zone Climate:Standard
PM2.5 Filter:Standard
Air Quality Monitoring:Standard
On-board Refrigerator:Standard
