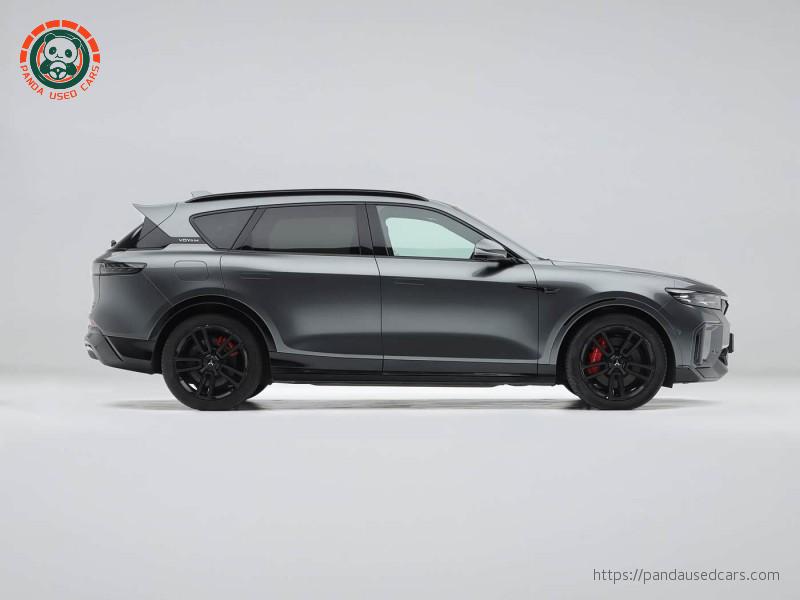

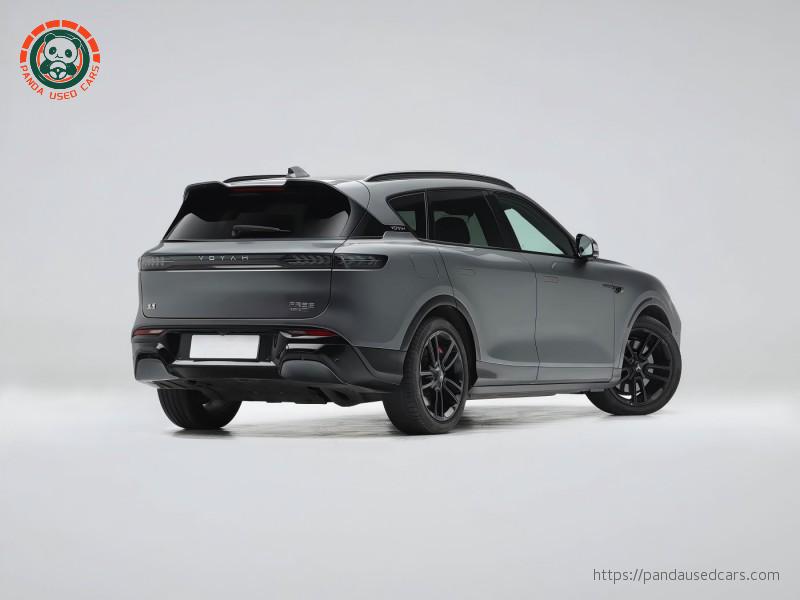

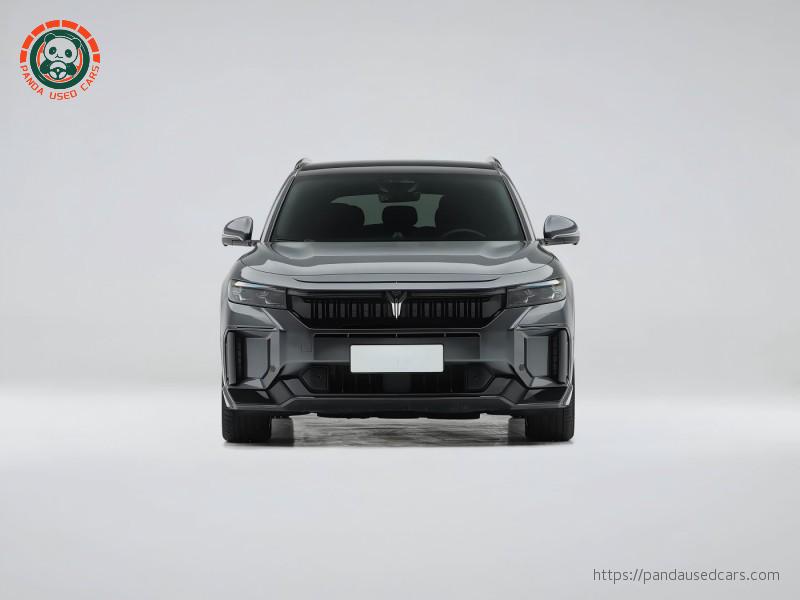

Launch: 2024-06-141.5T 150Ps L4 / 490PsOrigin: ChinaTransmission: Single-speed EV TransmissionFuel: EV
Overview
Basic Information
Manufacturer:VOYAH
Vehicle Class:Mid-size SUV
Energy Type:Range-extended Electric
Emission Standard:China VI
Launch Date:2024-06-14
Max Power (kW):360
Max Torque (N·m):720
Transmission:Single-speed EV Transmission
Engine:1.5T 150Ps L4
Electric Motor (Ps):490
L×W×H (mm):4905*1950*1645
0-100 km/h (s):4.5
Top Speed (km/h):200
WLTC Fuel Consumption (L/100km):0.6
CLTC Electric Range (km):259
WLTC Electric Range (km):190
Fast Charge Time (hours):0.43
Fast Charge SOC Range (%):30-80
Min SOC Fuel Consumption WLTC (L/100km):6.69
Combined Fuel Consumption (L/100km):3.21
Vehicle Warranty:5 years or 100,000 km
Curb Weight (kg):2260
Max Gross Weight (kg):2635
Body
Length (mm):4905
Width (mm):1950
Height (mm):1645
Wheelbase (mm):2960
Front Track (mm):1654
Rear Track (mm):1647
Loaded Ground Clearance (mm):113
Approach Angle (°):18
Departure Angle (°):25
Min Turning Radius (m):5.75
Body Structure:SUV
Door Opening Type:Conventional Doors
Doors:5
Seats:5
Fuel Tank Capacity (L):56
Trunk Volume (L):560-1320
Engine
Engine Model:DAM15NTDE
Displacement (mL):1499
Displacement (L):1.5
Intake Type:Turbocharged
Engine Layout:Transverse
Cylinder Arrangement:L
Cylinders:4
Valves per Cylinder:4
Valve Train:DOHC
Max Horsepower (Ps):150
Max Power (kW):110
Max Power RPM:5500
Max Torque (N·m):220
Max Torque RPM:2500-4000
Net Max Power (kW):110
Energy Type:Range-extended Electric
Engine Technology:Miller Cycle
Fuel Grade:95
Fuel Supply:Direct Injection
Cylinder Head Material:Aluminum Alloy
Cylinder Block Material:Aluminum Alloy
Emission Standard:China VI
Electric Motor
Front Motor Model:TZ200XSP10
Motor Type:Permanent Magnet / Synchronous
Total Motor Power (kW):360
Total Motor Horsepower (Ps):490
Total Motor Torque (N·m):720
Front Motor Max Power (kW):160
Front Motor Max Torque (N·m):310
Rear Motor Max Power (kW):200
Rear Motor Max Torque (N·m):410
Rear Motor Model:TZ220XSP01
Drive Motors:Dual Motor
Motor Layout:Front + Rear
EV System Warranty:8 years or 120,000 km
Battery & Charging
Battery Type:Ternary Lithium Battery
Cell Brand:CATL
Battery Technology:Amber Battery System
Battery Cooling:Liquid Cooling
CLTC Electric Range (km):259
WLTC Electric Range (km):190
Battery Capacity (kWh):43
Power Consumption (kWh/100km):22.5
Fast Charging:Supported
Fast Charge Time (hours):0.43
Fast Charge SOC Range (%):30-80
Slow Charge Time (hours):4.45
AC Charge Port Location:Left Rear Side
DC Charge Port Location:Left Rear Side
VTOL Max Discharge Power (kW):3.6
Transmission
Abbreviation:Single-speed EV Transmission
Gears:1
Transmission Type:Fixed Gear Ratio Transmission
Chassis & Steering
Drive Type:Dual-Motor AWD
4WD Type:Electric AWD
Front Suspension:Double Wishbone Independent Suspension
Rear Suspension:Multi-link Independent Suspension
Steering Assist:Electric Power Steering
Body Structure:Monocoque
Wheels & Brakes
Front Brakes:Ventilated Disc
Rear Brakes:Ventilated Disc
Parking Brake:Electronic Parking Brake
Front Tires:255/45 R20
Rear Tires:255/45 R20
Spare Tire:None
Passive Safety
Front Airbags:Driver/Passenger
Side Airbags:Front/Rear
Curtain Airbags:Front/Rear
Active Safety
ABS:Standard
Brake Force Distribution (EBD/CBC):Standard
Brake Assist (EBA/BAS/BA):Standard
Traction Control (ASR/TCS/TRC):Standard
Stability Control (ESC/ESP/DSC):Standard
Tire Pressure Monitoring:Tire Pressure Monitoring with Display
Seat Belt Reminder:Front
ISOFIX Child Seat Anchors:Standard
Lane Departure Warning:Standard
Autonomous Emergency Braking:Standard
Fatigue Reminder:Standard
Door Open Warning:Standard
Forward Collision Warning:Standard
Rear Collision Warning:Standard
Roadside Assistance Call:Standard
Driving Dynamics
Drive Mode Select:Sport, Eco, Normal/Comfort, Off-road, Snow, Custom/Personalized
Auto Hold:Standard
Hill Start Assist:Standard
Adaptive Suspension:Suspension Softness/Hardness Adjustment, Suspension Height Adjustment
Air Suspension:Standard
Air Suspension Type:Single Chamber
Driving Hardware
Front/Rear Parking Sensors:Front/Rear
Driver Assistance Camera:360-degree Panoramic Imaging
Transparent Chassis / 540° View:Standard
Front Perception Camera:Stereo
Cameras:10
Ultrasonic Sensors:12
Millimeter-wave Radars:5
Driving Features
Cruise Control:Full-speed Adaptive Cruise Control
Driver Assistance Level:L2
Reverse Cross Traffic Alert:Standard
Satellite Navigation:Standard
Live Traffic Info:Standard
Lane Change Assist:Standard
Lane Keeping Assist:Standard
Lane Centering:Standard
Traffic Sign Recognition:Standard
Auto Parking Assist:Standard
Remote Parking:Standard
Memory Parking:Standard
Reverse Track Assist:Standard
Assisted Lane Change:Standard
Ramp Assist:Standard
Traffic Light Recognition:Standard
Assisted Driving Sections:Highway
Exterior
Wheel Material:Aluminum Alloy
Power Tailgate:Power Liftgate with Gesture Sensing
Engine Immobilizer:Standard
Central Locking:Standard
Key Type:Remote Key, Bluetooth Key
Keyless Start:Standard
Keyless Entry:All Doors
Remote Start:Standard
Exterior Lighting
Low Beam:LED
High Beam:LED
LED Daytime Running Lights:Standard
Auto Headlights:Standard
Headlight Level Adjustment:Standard
Headlight Delay Off:Standard
Sunroof & Glass
Sunroof Type:Panoramic Sunroof (Opening)
Power Windows:Front/Rear
One-touch Windows:All
Anti-pinch Windows:Standard
Acoustic Side Glass:All
Rear Privacy Glass:Standard
Vanity Mirrors:Driver + Illuminated, Passenger + Illuminated
Rear Wiper:Standard
Rain-sensing Wipers:Rain-sensing
Exterior Mirrors
Mirror Features:Electric Adjustment, Electric Folding, Mirror Memory, Heating, Auto Tilt-down in Reverse, Auto-folding on Lock
Power Mirror Adjustment:Standard
Power Folding:Standard
Heated Mirrors:Standard
Auto Fold on Lock:Standard
Reverse Tilt-down:Standard

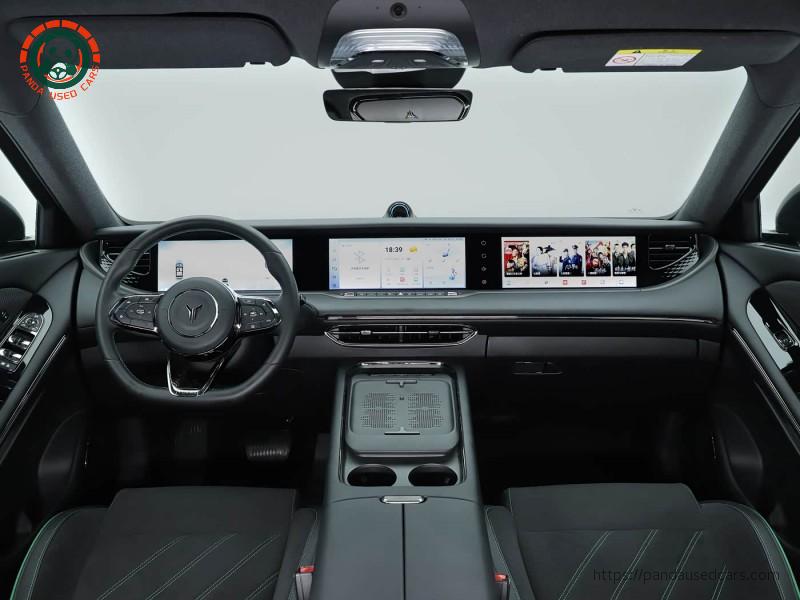

Connectivity & Intelligence
Center Display:Touch LCD Screen
Center Screen Size:12.3 inches
Passenger Screen Size:12.3 inches
Rear LCD Screens:1
Rear Multimedia Control:Standard
Bluetooth / Hands-free:Standard
Phone Connectivity:HUAWEI HiCar Supported
Voice Control:Multimedia, Navigation, Phone, Air Conditioning, Sunroof, Windows
Voice Wake Word:Hello VOYAH
Wake-free Voice:Standard
Voice Zone Recognition:Four Zones
Continuous Voice Recognition:Standard
See-and-say:Standard
Steering & Interior Mirror
Steering Wheel Material:Leather
Steering Adjustment:Manual Tilt and Telescopic
Shift Type:Electronic Column-mounted Shifter
Multifunction Steering Wheel:Standard
Trip Computer Display:Color
Digital Instrument Cluster:Standard
Cluster Screen Size:12.3 inches
Interior Mirror Features:Auto-dimming
In-cabin Charging
Media / Charging Ports:USB, Type-C
USB / Type-C Ports:Front: 2, Rear: 2
Wireless Phone Charging:Front
Wireless Charging Power:50W
Trunk 12V Outlet:Standard

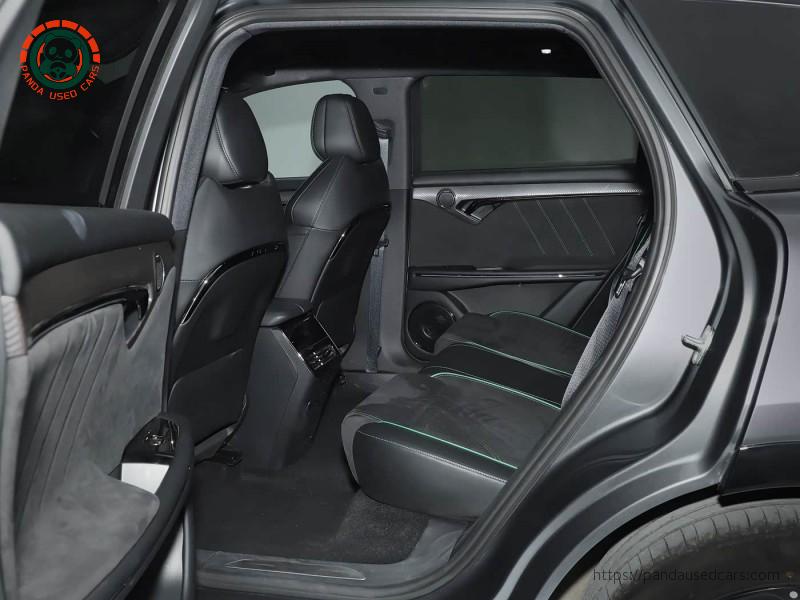

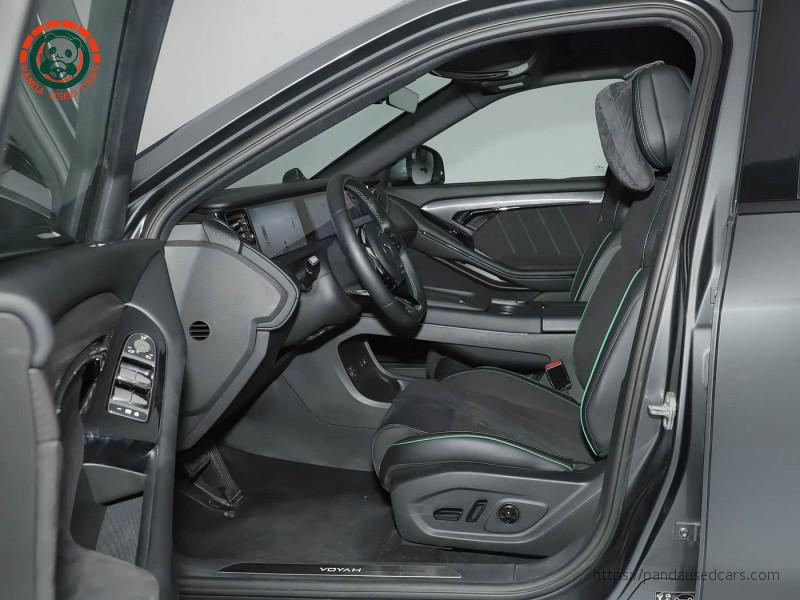

Seats
Seat Material:Leather/Microfiber Hybrid
Sport Seats:Standard
Driver Seat Adjustment:Fore-aft, Backrest, Height (4-way), Lumbar Support (4-way)
Passenger Seat Adjustment:Fore-aft, Backrest, Height (4-way), Lumbar Support (4-way)
Power Front Seats:Driver/Passenger
Front Seat Functions:Heating, Ventilation, Massage
Seat Memory:Driver
Rear Seat Fold:Split Folding
Front/Rear Armrests:Front/Rear
Rear Cup Holders:Standard
Audio & Interior Lighting
Speaker Brand:Dynaudio
Speakers:10
Touch Reading Lights:Standard
Ambient Lighting:64-color
Active Ambient Lighting:Standard
Climate & Refrigerator
Climate Control Type:Automatic Climate Control
Rear Vents:Standard
Multi-zone Climate:Standard
Air Purifier:Standard
PM2.5 Filter:Standard
In-cabin Fragrance:Standard
Air Quality Monitoring:Standard
On-board Refrigerator:Standard
Colors
Exterior Colors:black /white/gray
Interior Colors:black /white/gray
